honeycomb core board
Quick Details
Place of Origin: Hunan, China
Brand Name: Huabond
Model Number: H-H104
Usage: Outdoor
Function: Anti-Static, Antibacterial, Fireproof, Mould Proof
Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror
Application: FurnitureDoorsDecoration materials..
Color: Yellow, red, black, etc.
Size: Customer's Requirements
Core cell: 4.8-30mm
Material: Aluminum
Supply Ability: 15000 Square Meter/per Month
Packaging Details: Customer's Requirements
Port: Shenzhen or Guangzhou port

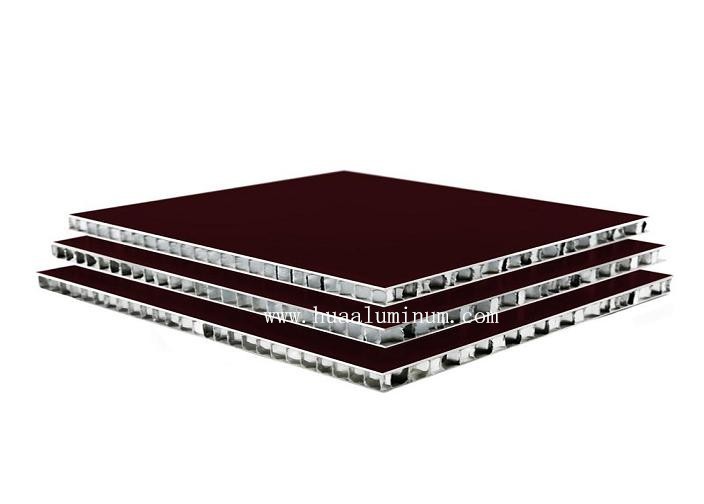

| Product name | Aluminum Honeycomb Panel |
| Thickness | 6-100mm, other size can be customized. |
| Max size | 1600*6000mm (Flat) |
| Aluminum alloy | 1100/3003/3105 |
| Surface treatment | PE/PVDF coating |
| Painting | PPG, Akzo Nobel, Becker, etc |
| Color | Solid color, Metallic Color, Wooden Color, Stone Color, etc |
| Size/Design | Sizes and design are available according your detail drawings |
Information interested by you:
| Certificates: | SGS,ISO 9001:2000,CE,KYNAR 500, etc. |
| MOQ: | 600 sqm |
| Delivery time: | around 22-25 days, depends on the panel drawings and quantity |
| Payment Term: | TT, LC at sight |
| Production Capability: | 30000Sqm Per Month |
| More Service: | OEM, Small samples free |
| Main Production: | Stone Aluminum Single Panel, Stone colored Aluminum Single Panel, Wooden colored Aluminum Single Panel, etc. |
Application:
It is mostly applied for big area such as supermarkets, banks, hospitals, exhibition halls and so on.
| Mechanical Properties |
| Alloy Honeycomb | Compression | Plate Shear |
| Designation | Bare | L Direction | W Direction |
| Material Cell Size | Strength psi | Strength psi | Modulus ksi | Strength psi | Modulus ksi |
| mm --- inch | Typ. | Typ. | Typ. | Typ. | Typ. |
| 6.4---1/4 | 625 | 365 | 70 | 215 | 38 |
| 9.5---3/8 | 340 | 230 | 45 | 130 | 22 |
| 12.7--1/2 | 190 | 140 | 28 | 80 | 14 |
| 17-----3/4 | 120 | 100 | 20 | 65 | 11 |
| 25.4----1 | 80 | 65 | 14 | 45 | 7 |
| 9.5-----3/8 | 362 | 250 | 55 | 160 | 26 |
| Sizes are available on requested, above values are not guaranteed and should be used as indication only. |
